SERIES FE4200HD
Duty Rating: Type IAA
Load: 375

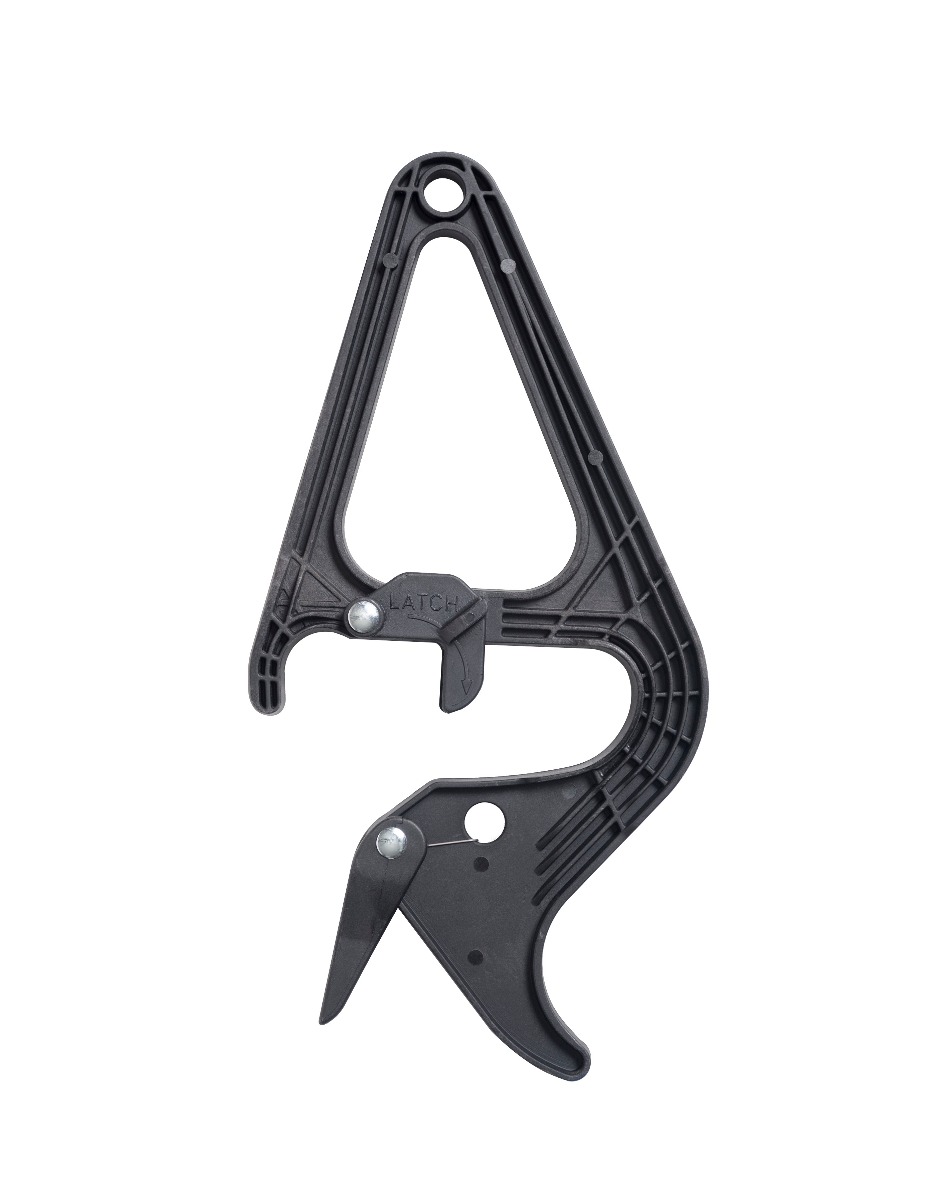

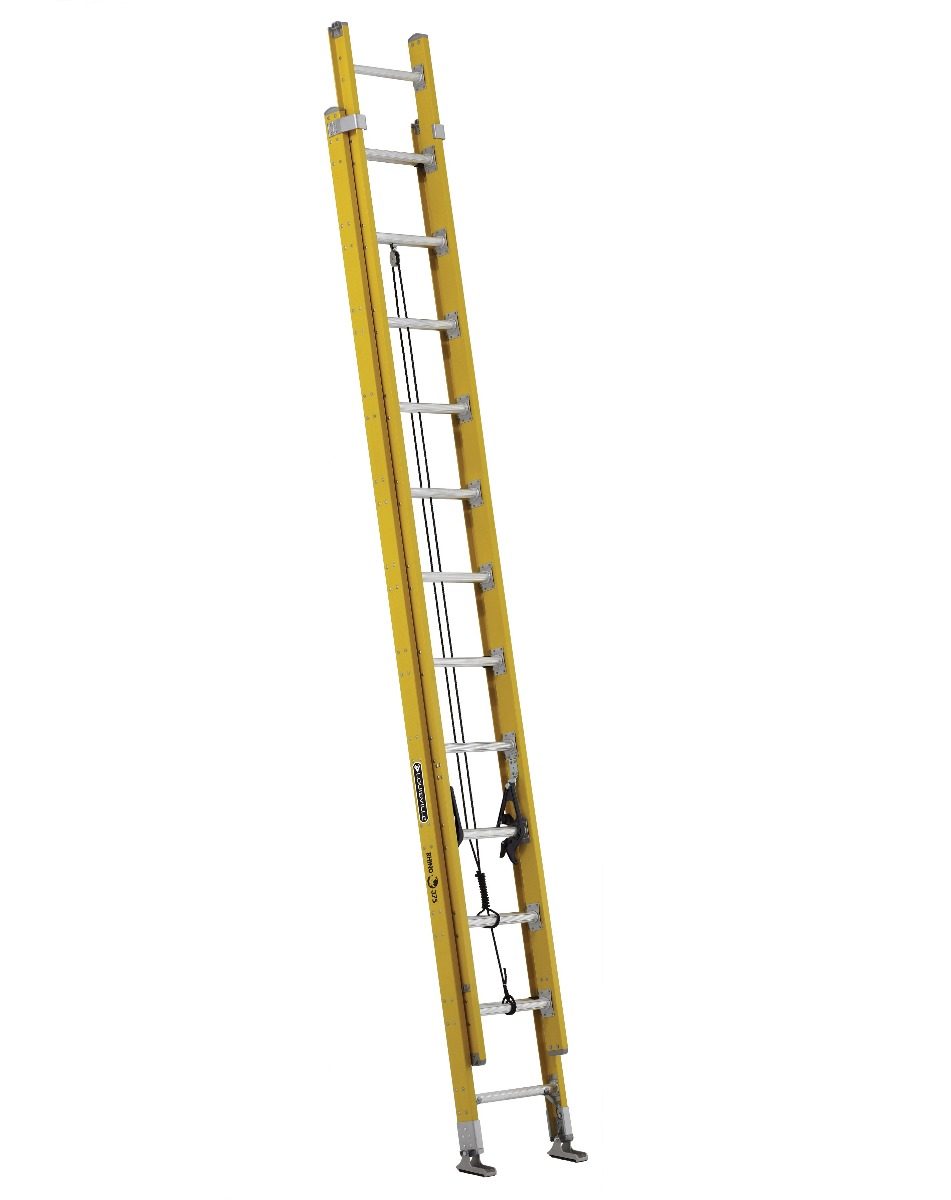

This Louisville 24 foot heavy duty fiberglass extension ladder has a 375lb load capacity, rated ANSI Type IAA. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder includes the patented QuickLatch RungLock system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. The ladder features outside slide guides, aluminum rung connector plates, D-shaped rungs fully serrated for a slip resistant surface, non-marring rail end caps, rope and pulley, and full heavy duty metal boot with steel swivel safety shoes to be used with the tread down or in spike position. The Louisville FE4224HD fiberglass extension ladder meets or exceeds the safety standards set by ANSI and OSHA.
FEATURES
Where to Buy
PRODUCT SPECIFICATIONS
Product | Extension Ladders |
---|---|
Duty Rating | Type IAA |
Number of Steps | 24 |
Material | Fiberglass |
Closed Volume (cu. ft.) | 11.241 |
Closed Width (in) | 18.5 |
Max. Extended Length (ft) | 21 |
Inside Width Fly (in) | 13.688 |
ANSI | Certified |
SKU | FE4224HD |
Load Capacity (lbs) | 375 |
Rung Type | D-rung |
Weight | 59 |
Closed Height | 150 |
Section Length (ft) | 12 |
Rail Depth (in) | 3.25 |
Outside Width Base (in) | 17.375 |
Certified | OSHA |
Style | Standard |
Size | 24 |
Step Depth | 1.5 |
Maximum Standing Height (in) | 21’ |
Closed Depth | 7 |
Total Length (ft) | 24 |
Inside Width Base (in) | 15 |
Outside Width Fly (in) | 16.063 |
