SERIES FE0600
Duty Rating: Type II
Load: 225

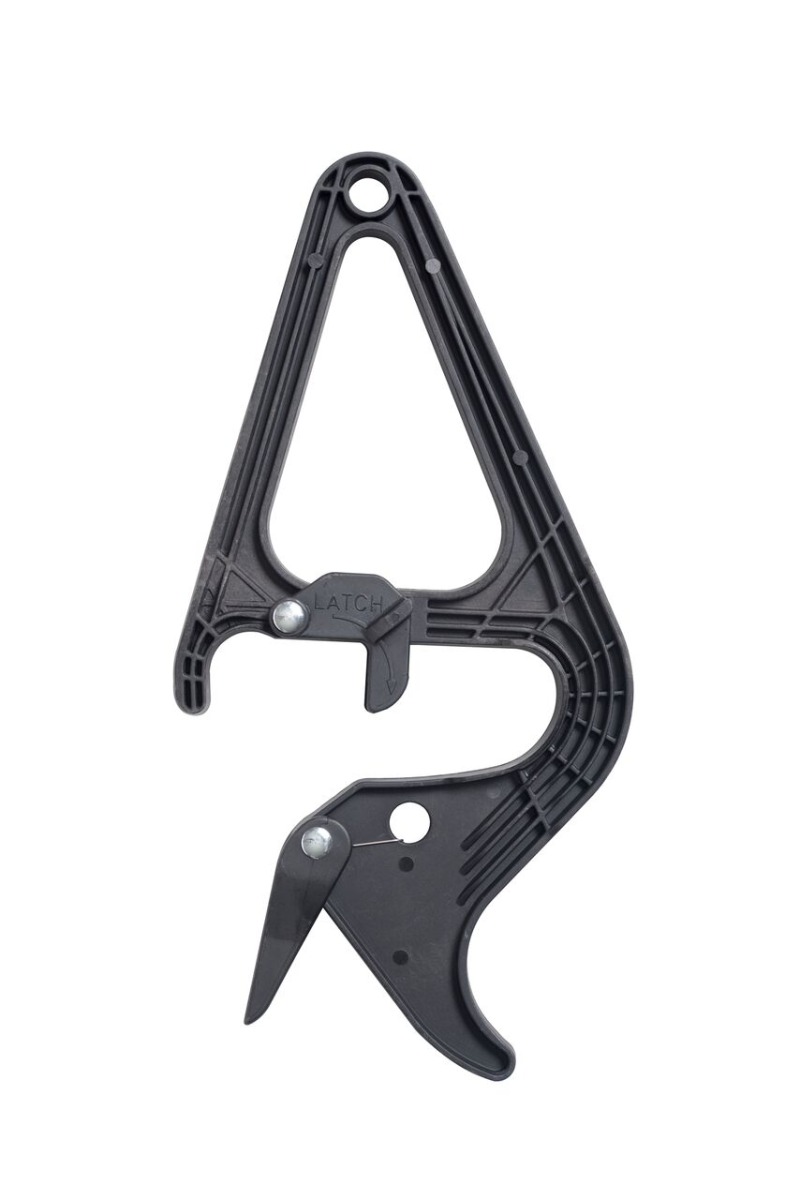

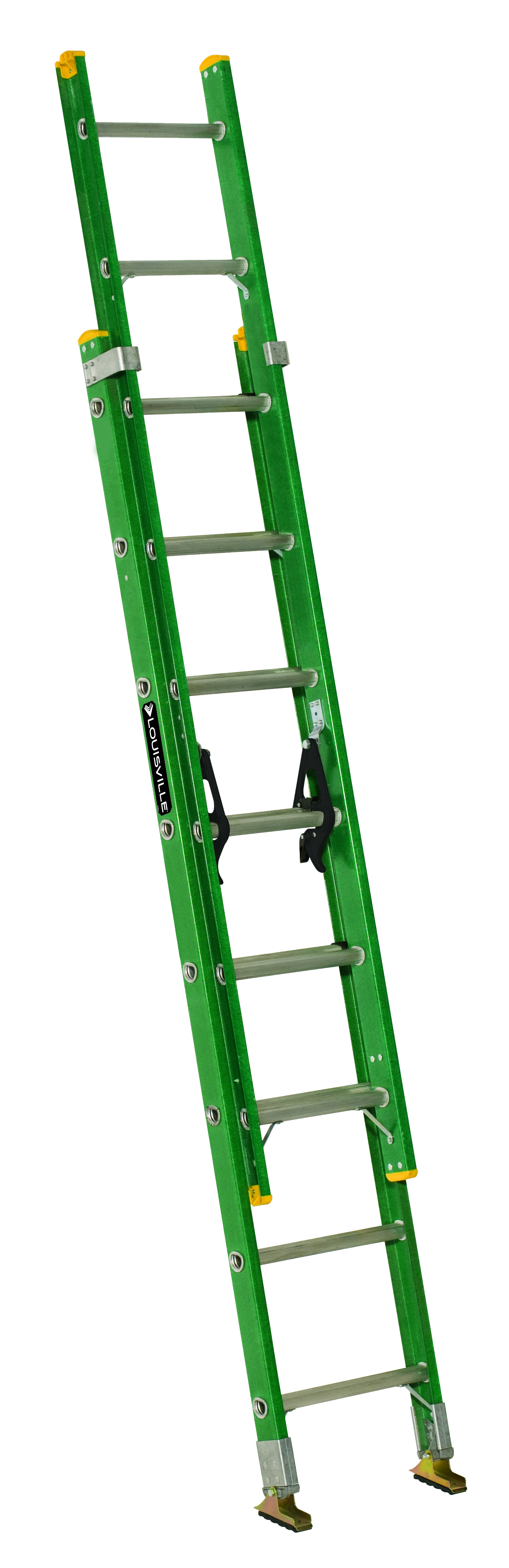

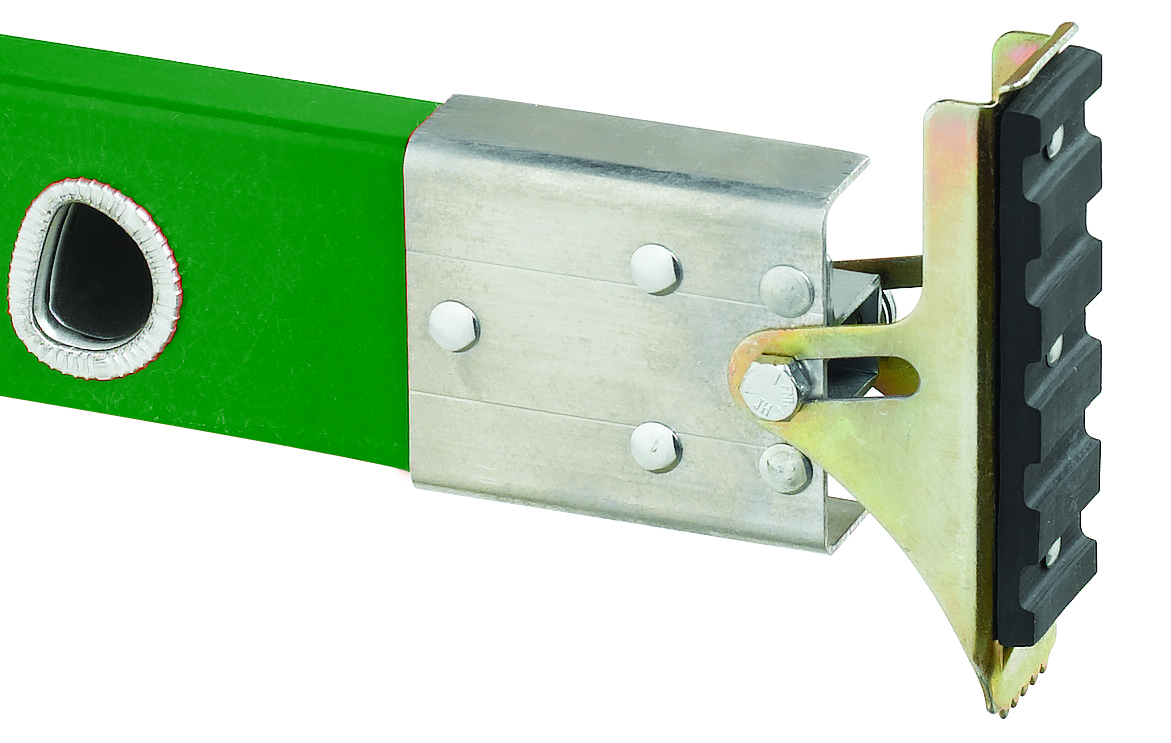

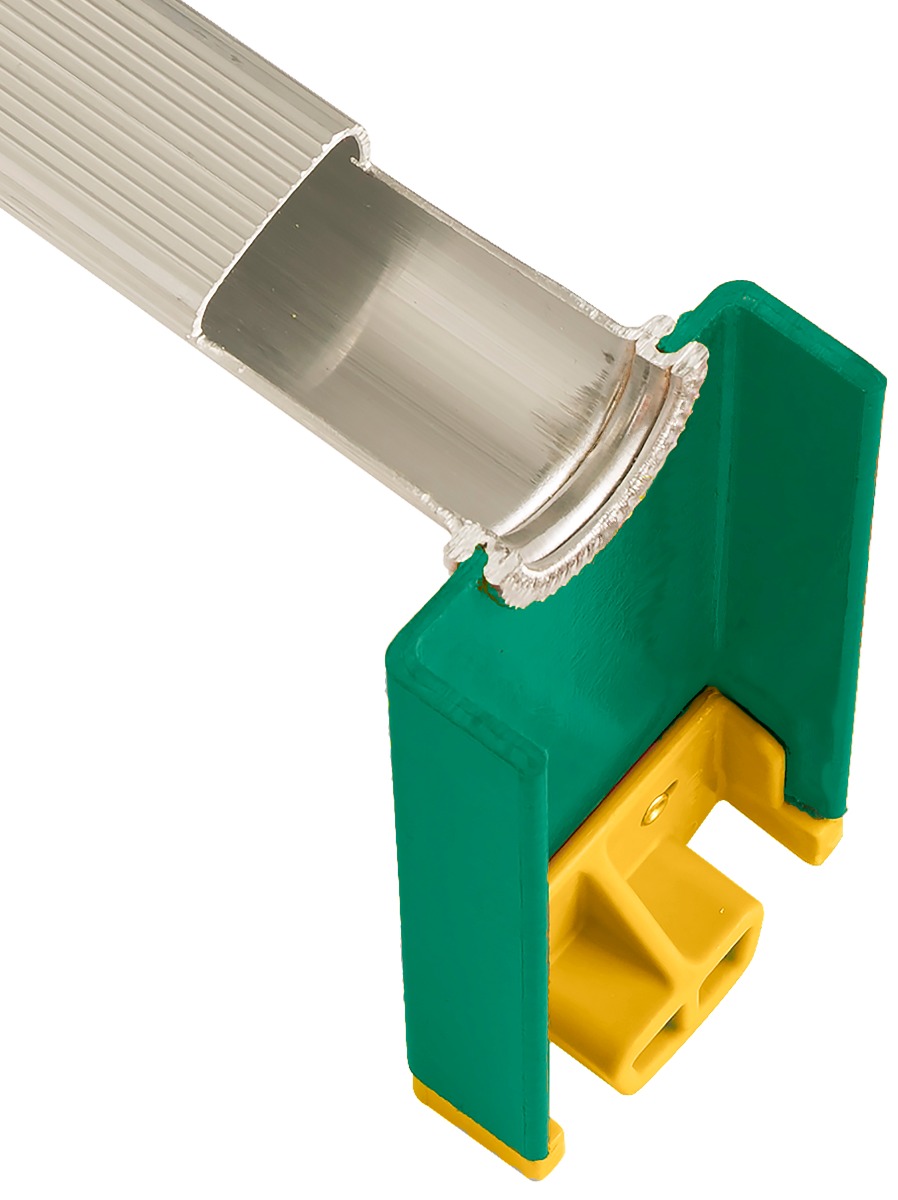

This Louisville 16 foot fiberglass extension ladder has a 225lb load capacity, rated ANSI Type II. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder includes the patented QuickLatch RungLock system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. The ladder features outside slide guides, D-shaped rungs fully serrated for a slip resistant surface, non-marring rail end caps, rope and pulley, and steel swivel safety shoes with metal shield to be used with the tread down or in spike position. The Louisville FE0620 fiberglass extension ladder meets or exceeds the safety standards set by ANSI and OSHA.
FEATURES
Where to Buy
PRODUCT SPECIFICATIONS
Product | Extension Ladders |
---|---|
Duty Rating | Type II |
Number of Steps | 20 |
Material | Fiberglass |
Closed Volume (cu. ft.) | 8.061 |
Closed Width (in) | 17.812 |
Max. Extended Length (ft) | 17 |
Inside Width Fly (in) | 13.688 |
ANSI | Certified |
SKU | FE0620 |
Load Capacity (lbs) | 225 |
Rung Type | D-rung |
Weight | 36 |
Closed Height | 125.125 |
Section Length (ft) | 10 |
Rail Depth (in) | 3.25 |
Outside Width Base (in) | 17.063 |
Certified | OSHA |
Style | Standard |
Size | 20 |
Step Depth | 1.5 |
Maximum Standing Height (in) | 17’ |
Closed Depth | 6.25 |
Total Length (ft) | 20 |
Inside Width Base (in) | 14.688 |
Outside Width Fly (in) | 16.063 |
