SERIES L-3022-PT
Duty Rating: Type IA
Load: 300

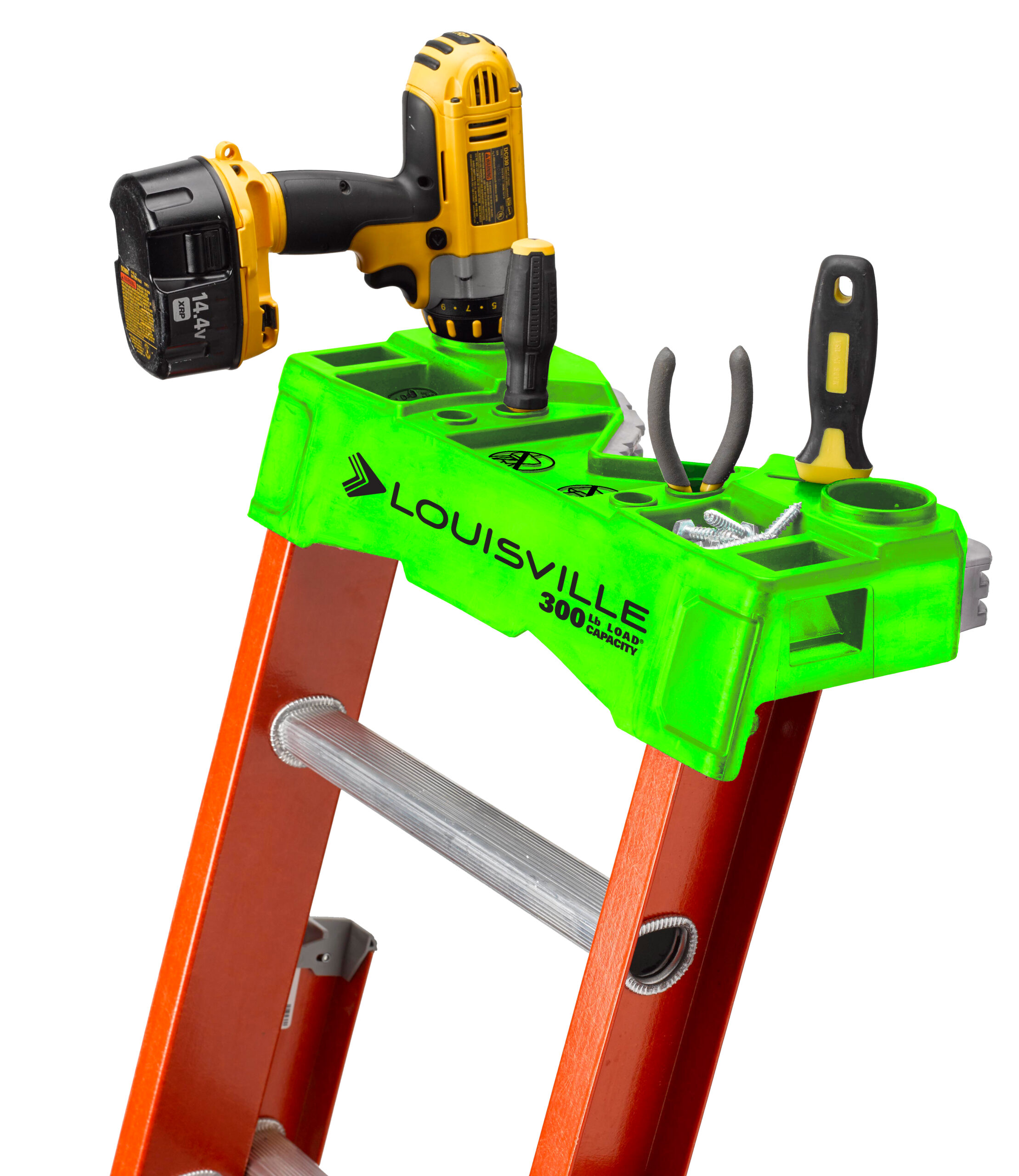

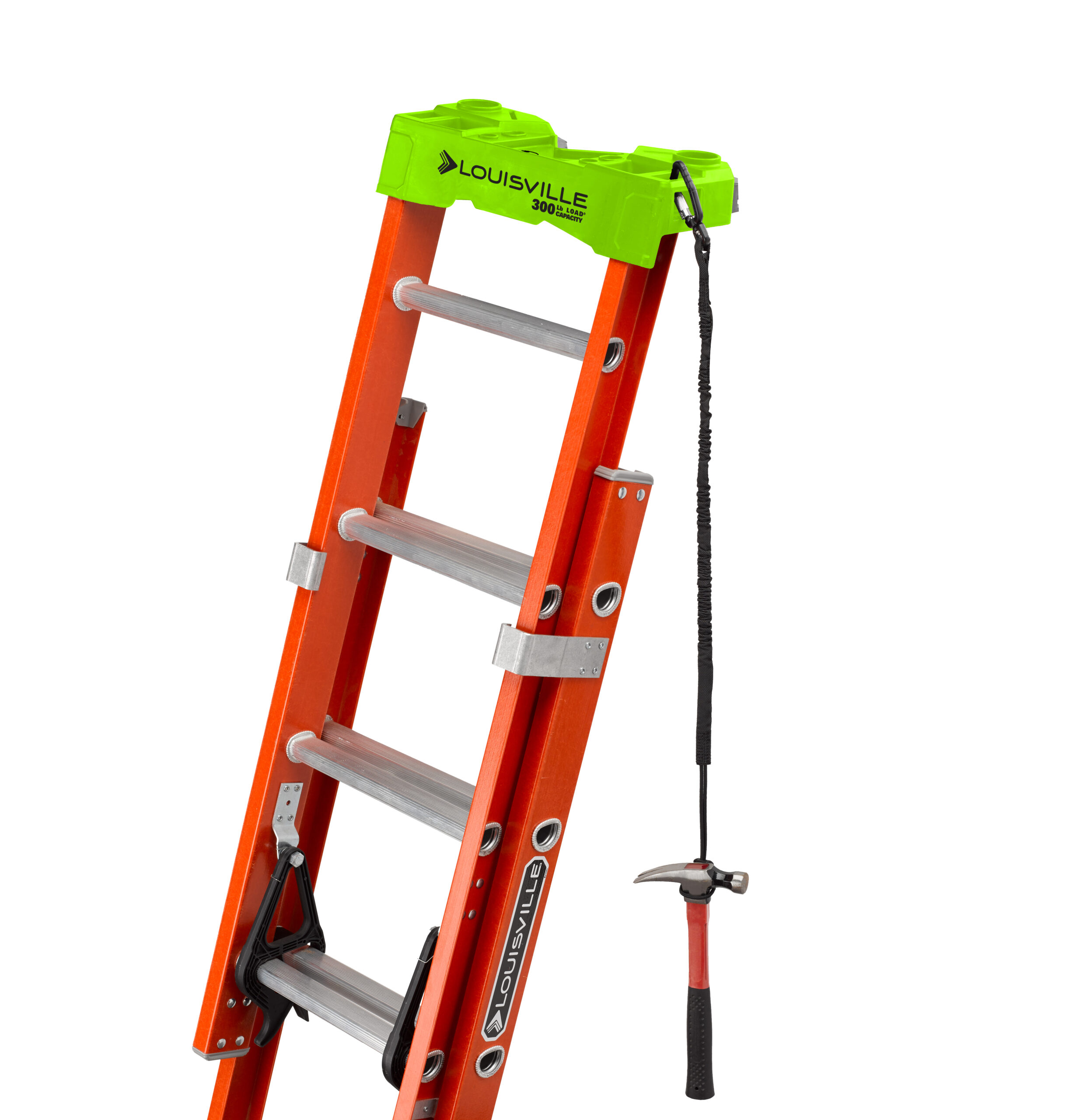

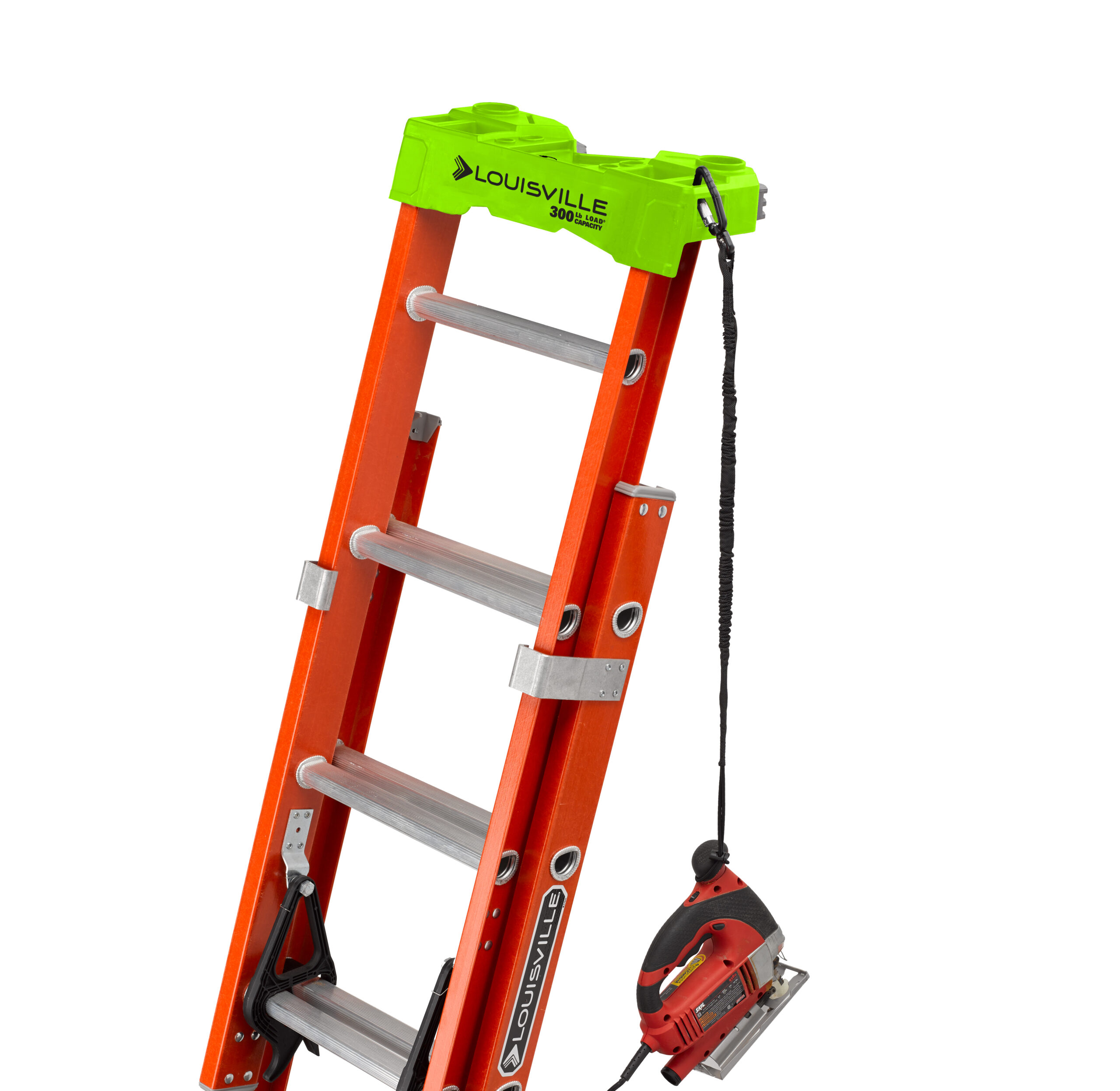

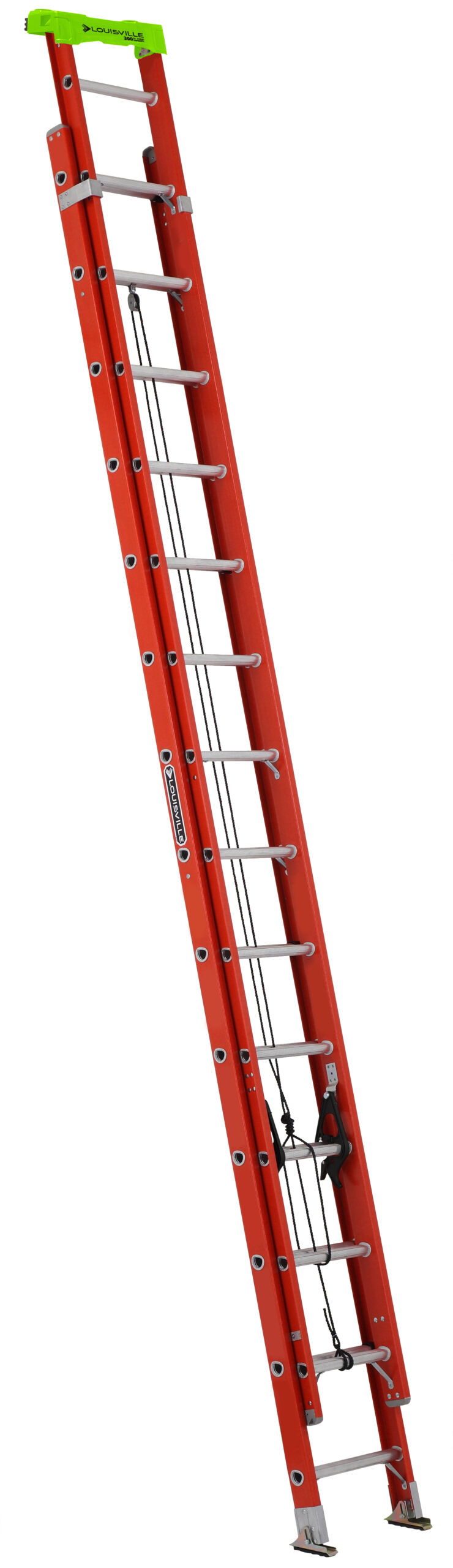

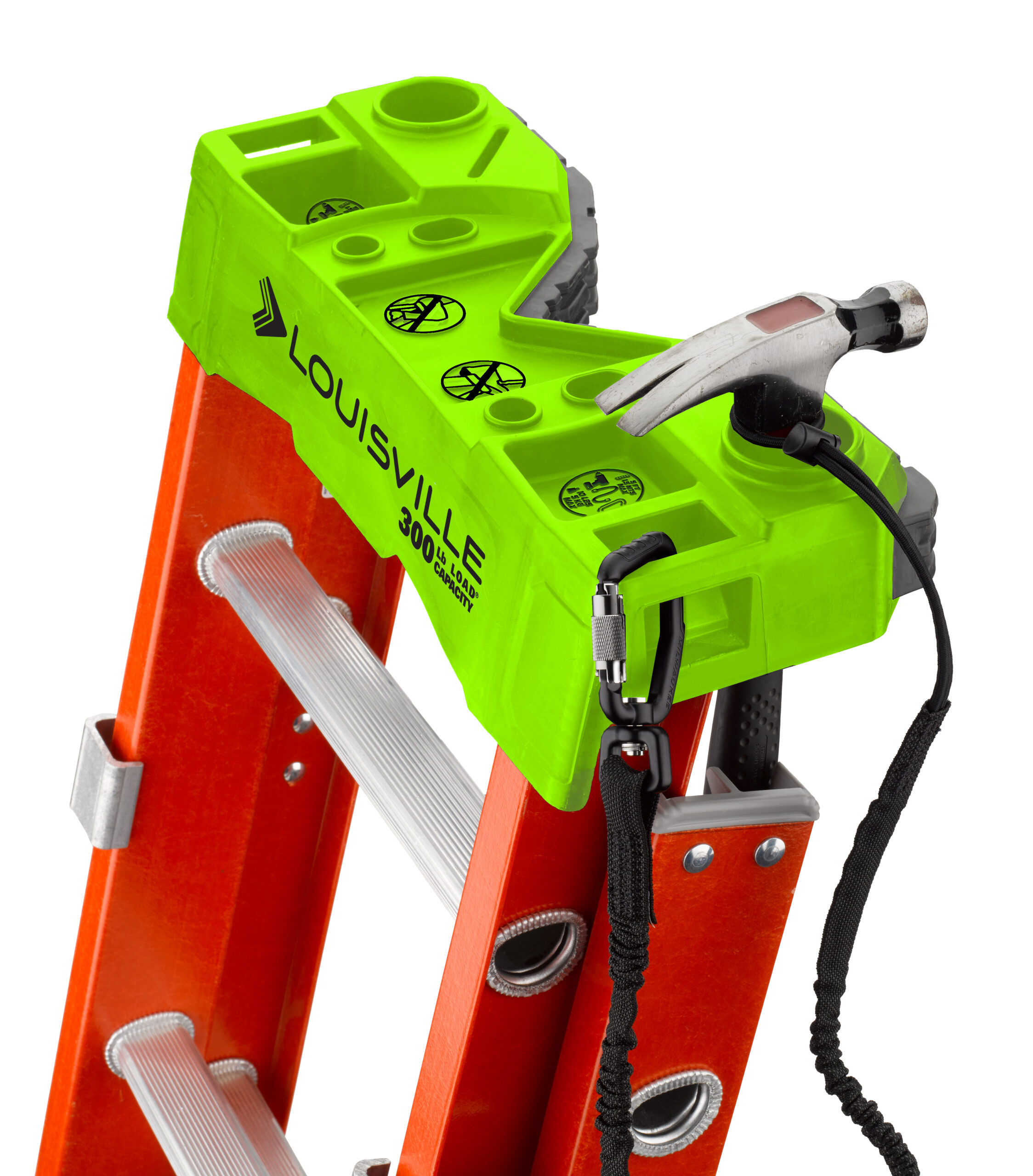

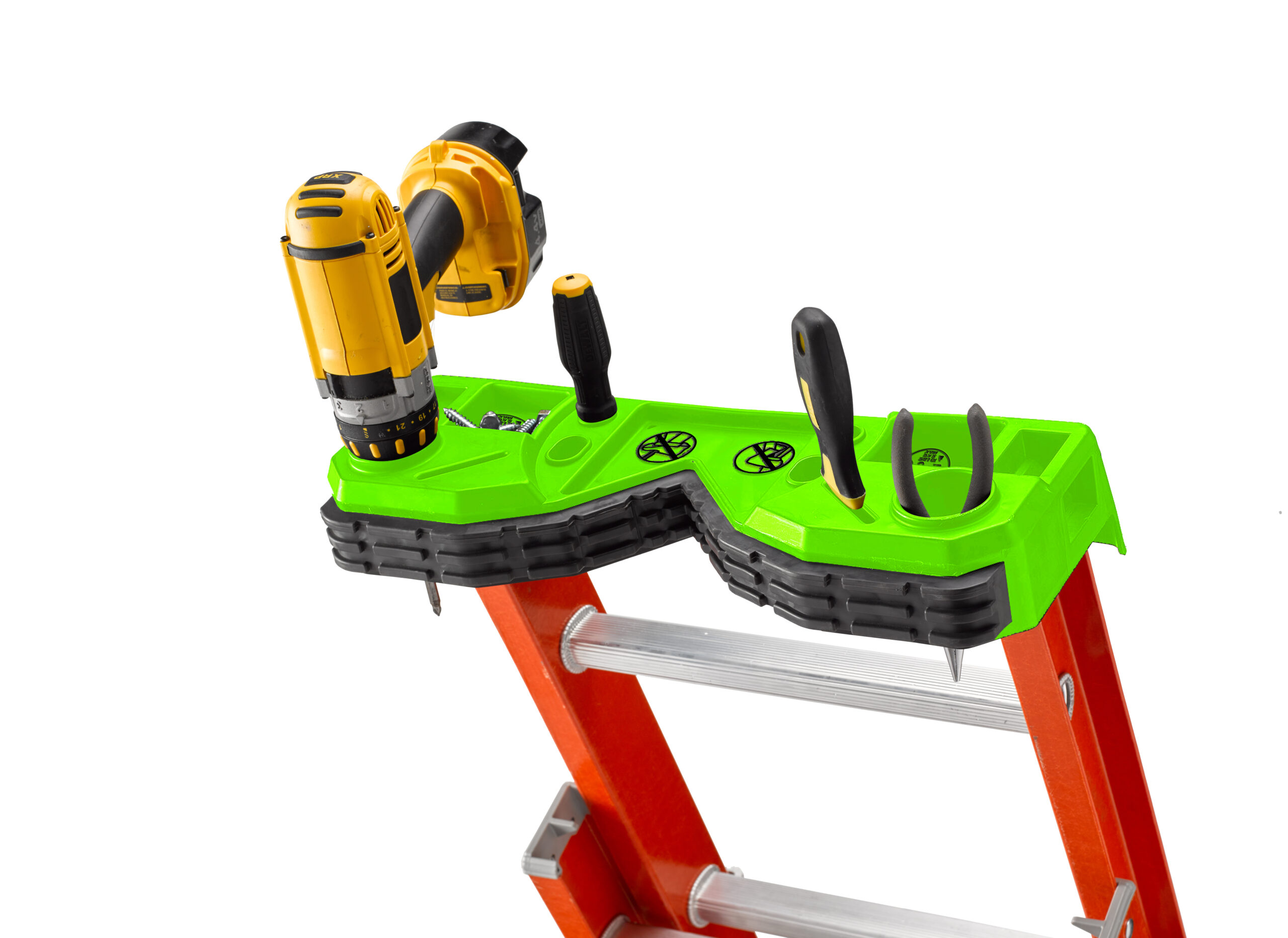

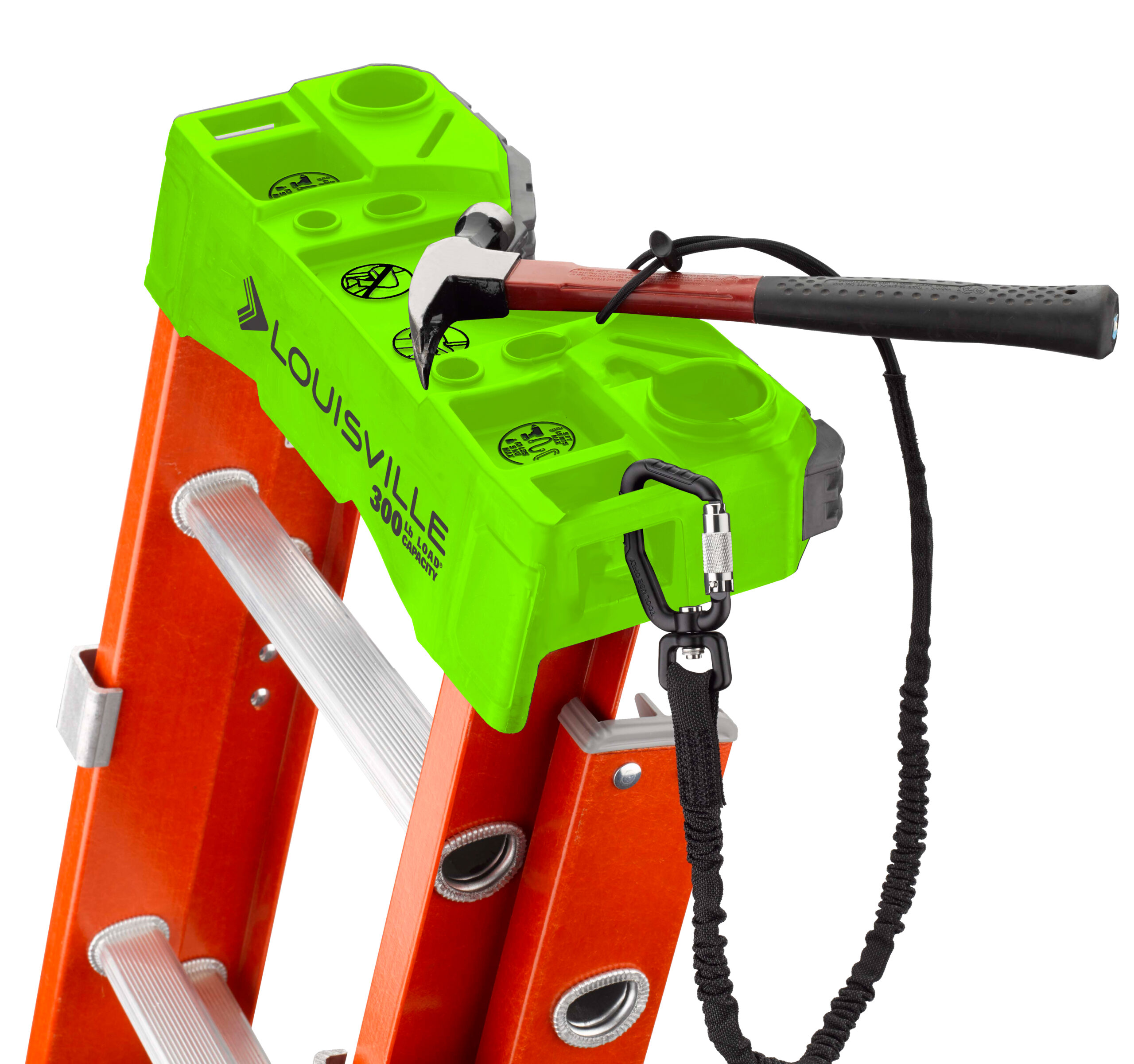

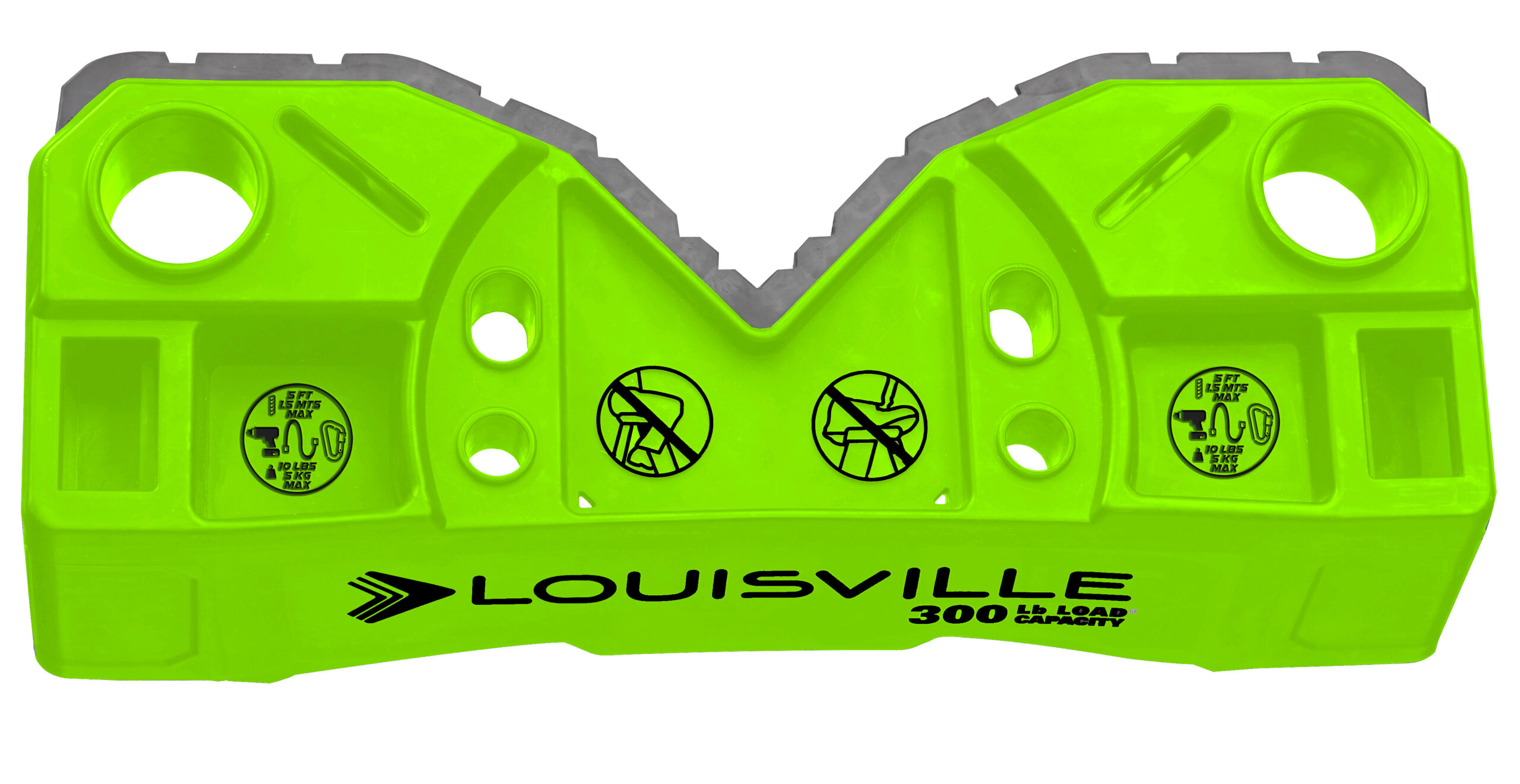

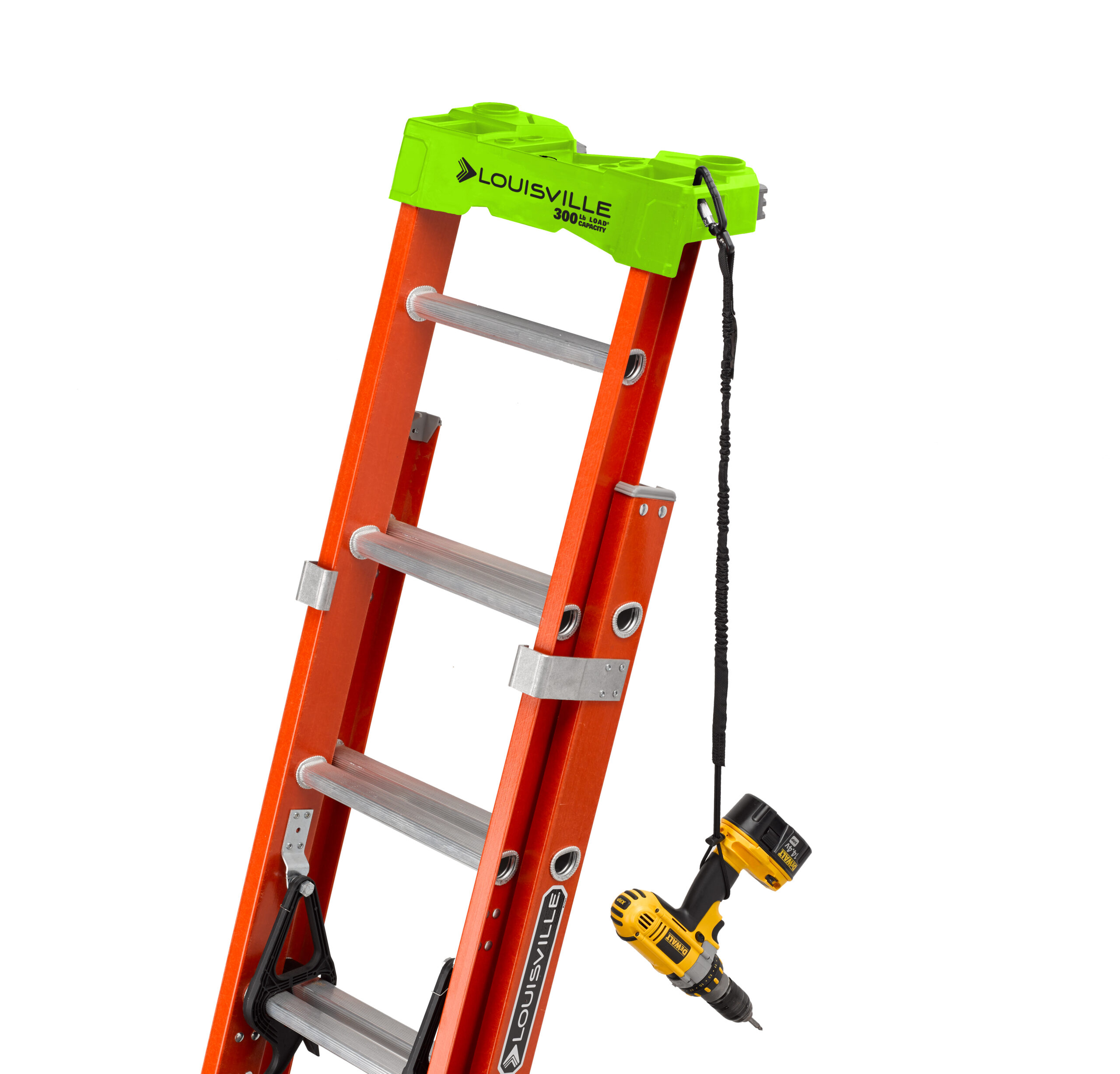

This Louisville 28 foot fiberglass extension ladder has a 300lb load capacity, rated ANSI Type IA. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder also includes our patented ProTop specially designed to increase productivity. This innovative ProTop features a corner grip, pole grip, integrated bumper, and work tray; all compact and accessible in a spacious design. This ladder also features outside slide guides, fully serrated D-shape rungs for a slip-resistant surface, non-marring rail end caps, QuickLatch rung lock for better secure operation, rope and pulley, and full heavy duty metal boot with steel swivel safety shoes to be used with the tread down or in spike position. The Louisville L-3022-28PT fiberglass extension ladder meets or exceeds the safety standards set by ANSI and OSHA.
FEATURES
Where to Buy
PRODUCT SPECIFICATIONS
Product | Extension Ladders |
---|---|
Duty Rating | Type IA |
Number of Steps | 28 |
Material | Fiberglass |
Closed Volume (cu. ft.) | 11.434 |
Closed Width (in) | 17.812 |
Max. Extended Length (ft) | 25 |
Inside Width Fly (in) | 13.688 |
ANSI | Certified |
SKU | L-3022-28PT |
Load Capacity (lbs) | 300 |
Rung Type | D-rung |
Weight | 60 |
Closed Height | 174 |
Section Length (ft) | 14 |
Rail Depth (in) | 3.25 |
Outside Width Base (in) | 17.045 |
Certified | OSHA |
Style | Standard |
Size | 28 |
Step Depth | 1.5 |
Maximum Standing Height (in) | 25’ |
Closed Depth | 6.375 |
Total Length (ft) | 28 |
Inside Width Base (in) | 14.645 |
Outside Width Fly (in) | 16.088 |
